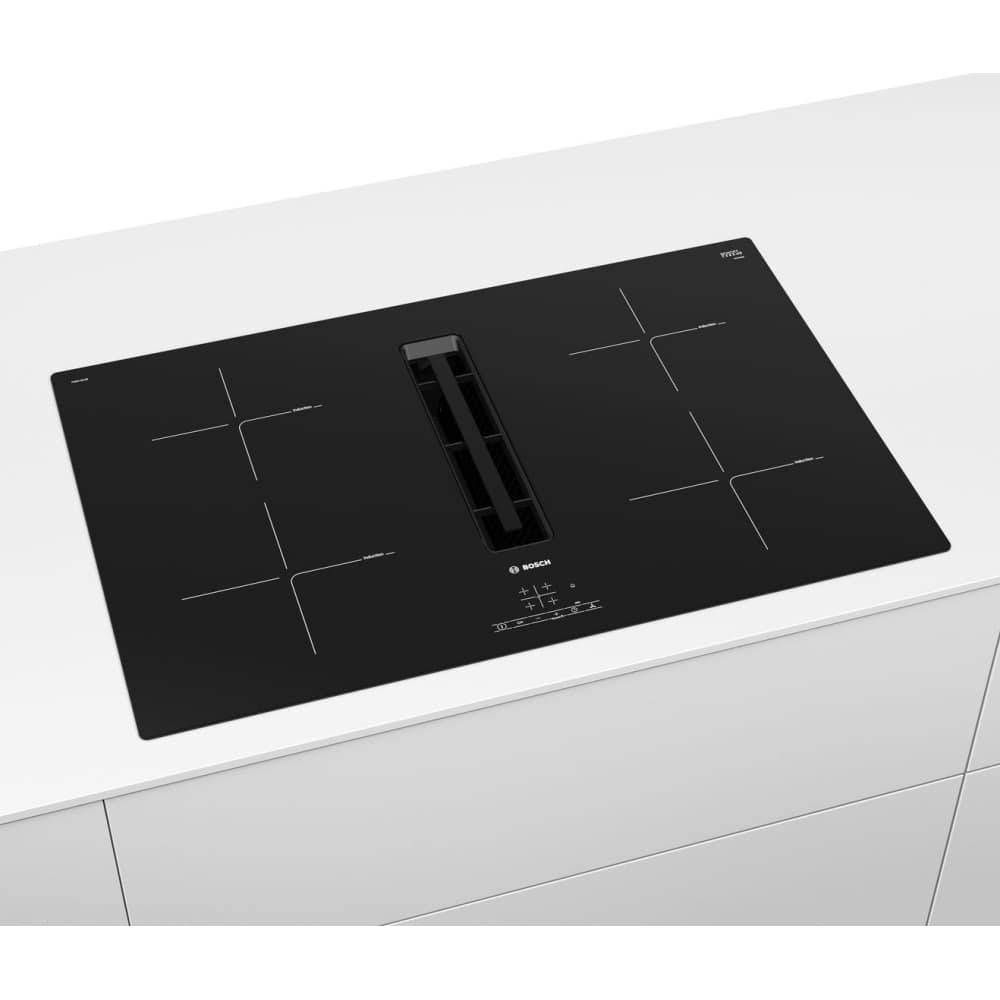

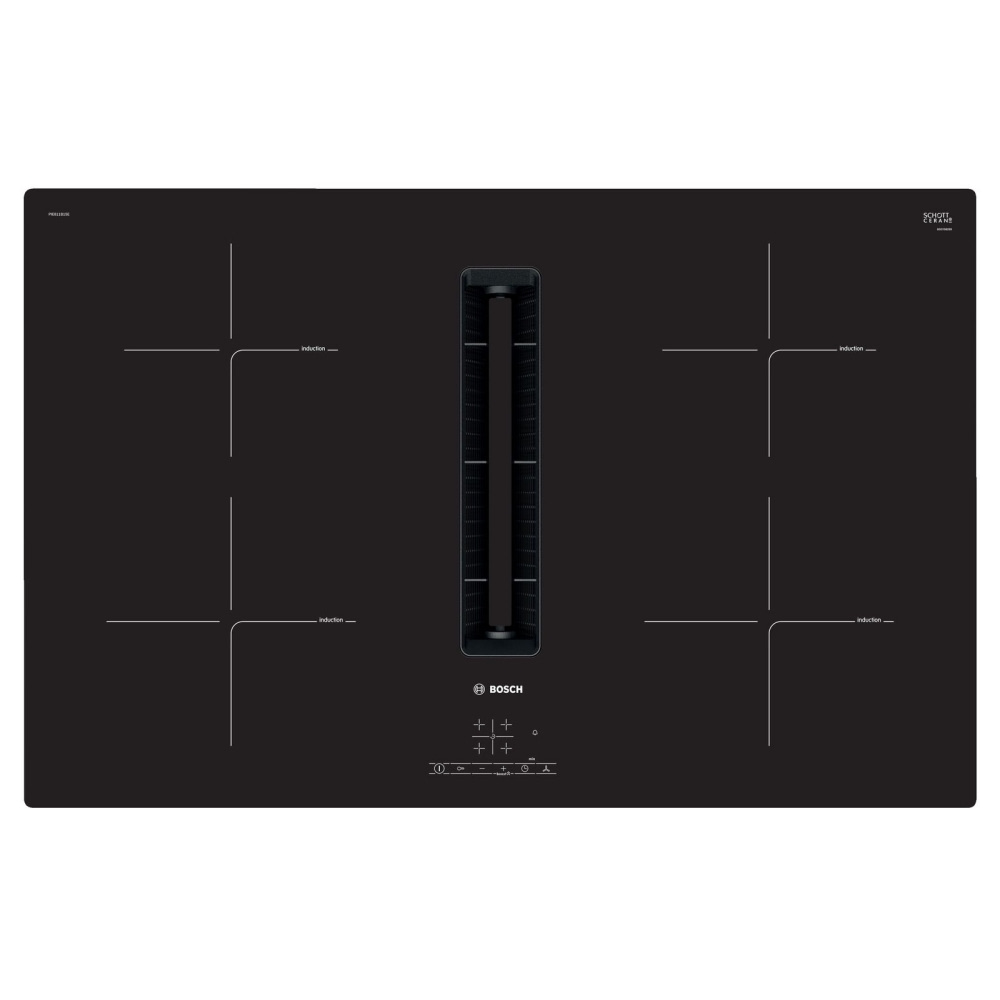

Bosch PIE811B15E – EX DISPLAY Series 4 80cm Air Venting Induction Hob – BLACK
This 80cm wide Bosch air venting induction hob comes complete with its own integrated extraction unit. It features 4 induction zones with touch controls and an impressive extraction rate of up to 500m³ per hour. It is finished in frameless black glass.
2 Year WarrantySubject to registration on manufacturers website
We'll recycle your old appliance for only £25.00

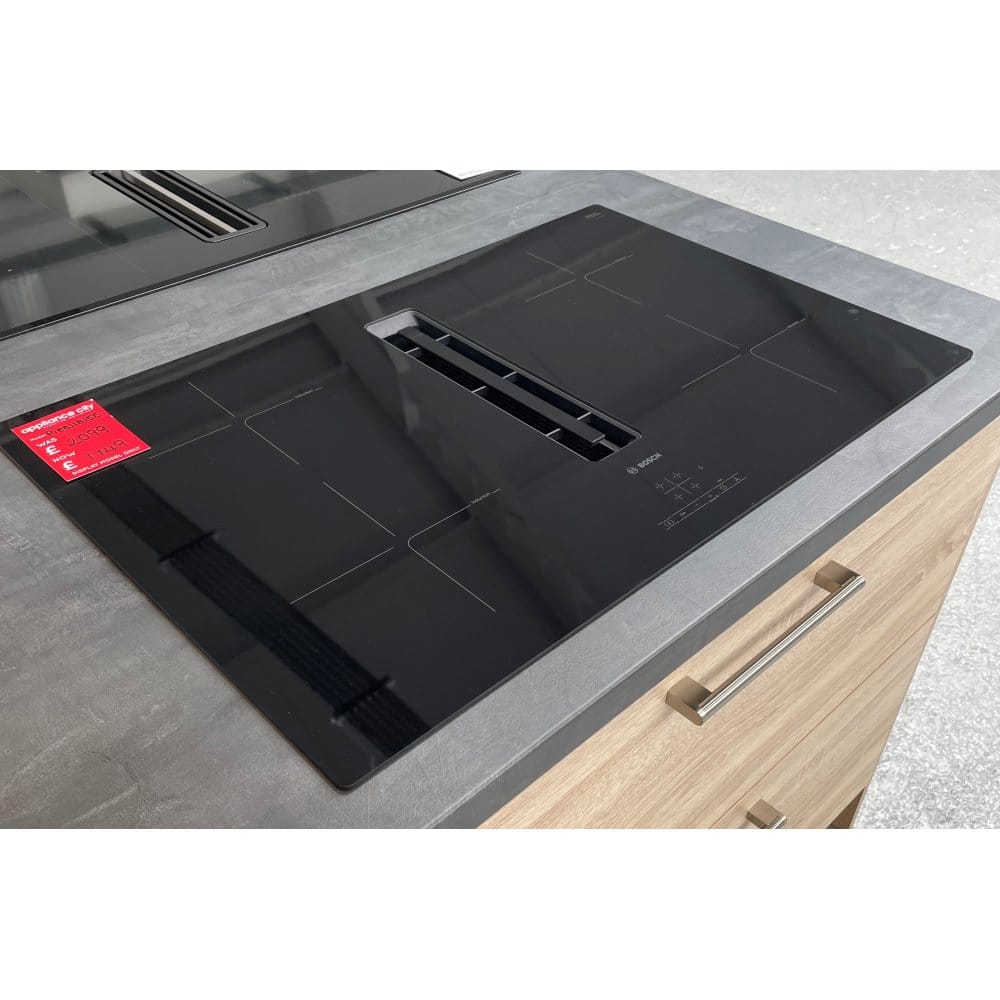

This product has been on display in our showroom and is supplied with the full manufacturer’s warranty. It will be wrapped in bubble wrap prior to delivery but it may have minor marks or scratches.
Hob Specifications:

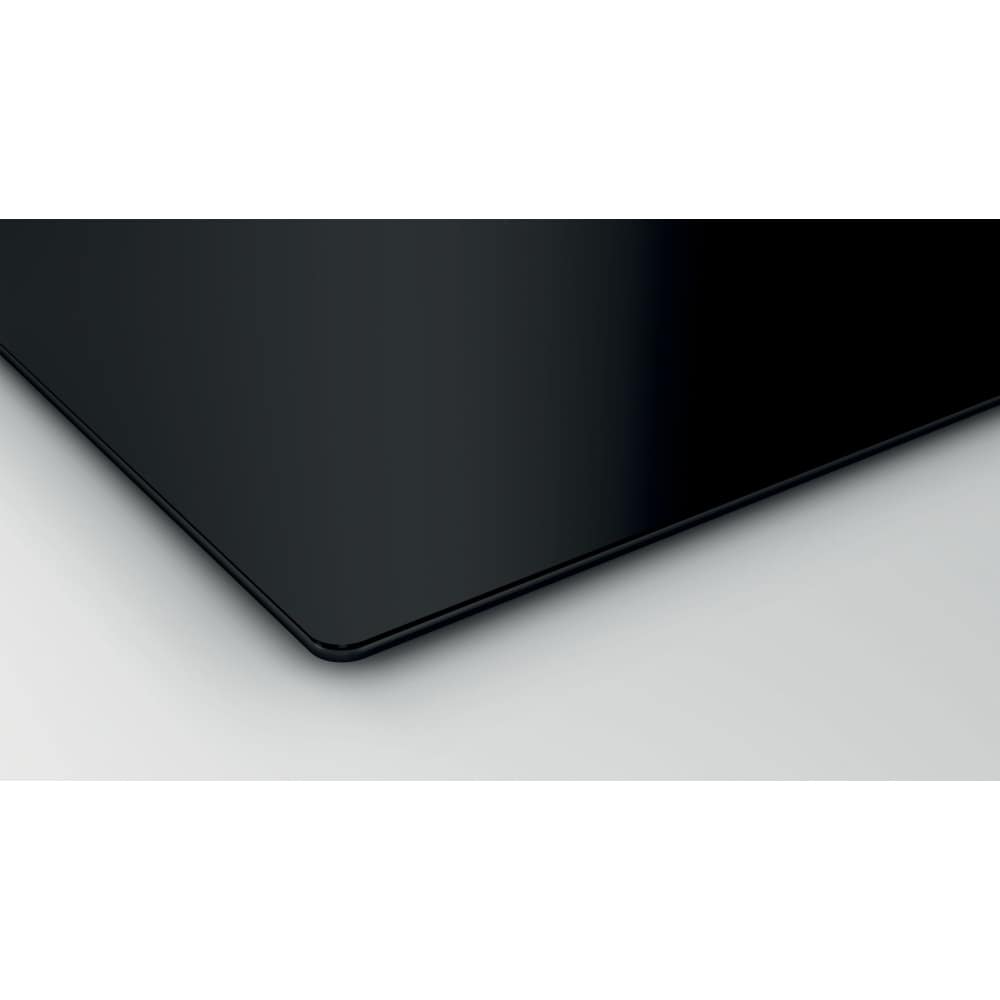

Frameless black glass
4 heat zones: 1 x Ø 210 mm, 2.2 KW (max. Power levels 3.7 KW) Induction; 1 x Ø 180 mm, 1.8 KW (max. Power levels 3.1 KW) Induction; 1 x Ø 180 mm, 1.8 KW (max. Power levels 3.1 KW) Induction;1 x Ø 210 mm, 2.2 KW (max. Power levels 3.7 KW) Induction

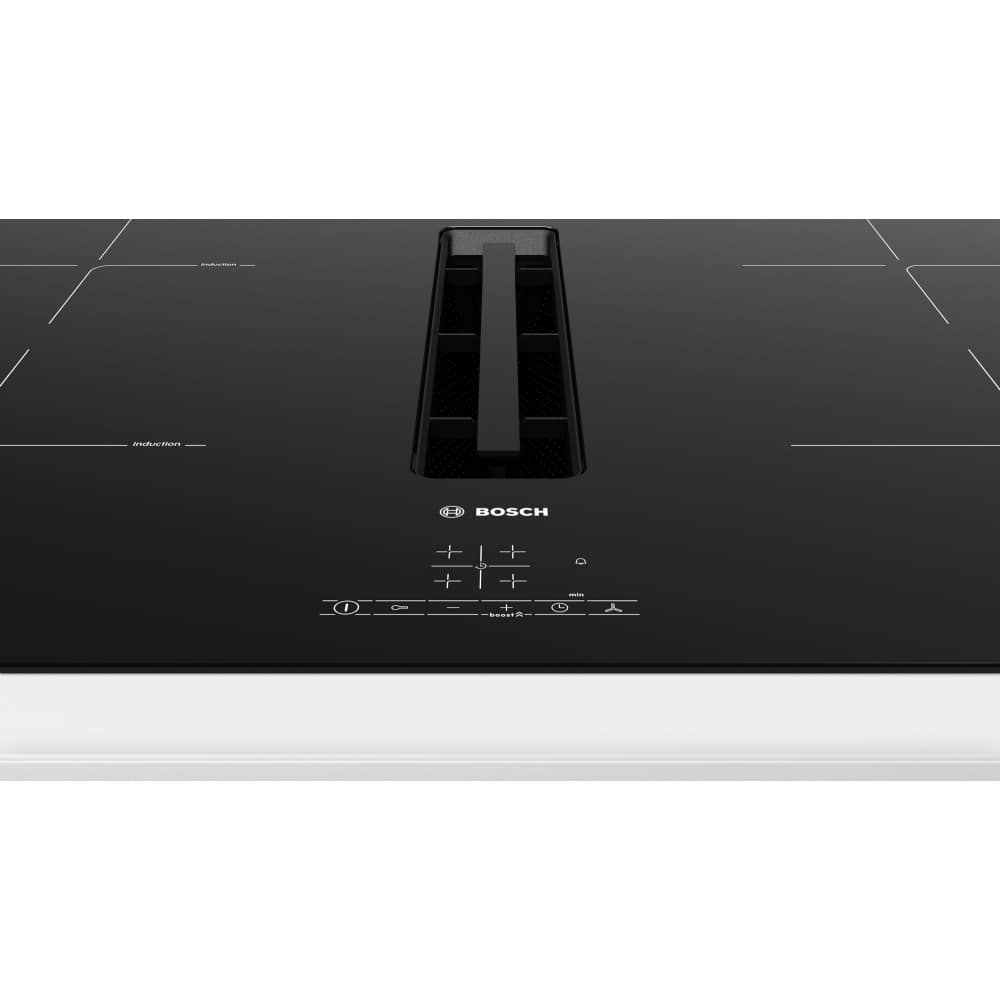

Electronic touch controls
Variable 17-stage power settings for each zone
Timer for all zones
Boost setting for all zones
Automatic pan recognition
ReStart function
QuickStart function
Control panel lock
2 stage residual heat indicator for each zone
Automatic safety switch-off
Extractor Specifications:
Electronic touch controls
3 speed settings plus boost
Automatic switch-on of ventilation system when a cooking zone is used
Automatic delayed shut-off
Extraction performance in ducted extraction (according to EN 61591): min. normal setting 332 m3/h , max. normal setting 500 m3/h , max. Boost-/Intensive setting 575 m3/h .
Extraction performance in recirculated extraction (according to EN 61591): min. normal setting 327 m3/h , max. normal setting 500 m3/h , max. Boost-/Intensive setting 565 m3/h.
Noise level in ducted extraction (Sound power level according to EN 60704-3): min. normal setting 60 dB re 1 pW, max. normal setting 68 dB re 1 pW, max. Boost-/Intensive setting 72 dB re 1 pW.
Noise level in recirculated extraction (Sound power level according to EN 60704-3. ): min. normal setting 58 dB re 1 pW, max. normal setting 68 dB re 1 pW, max. Boost-/Intensive setting 70 dB re 1 pW.
Connected load: 7.4 KW

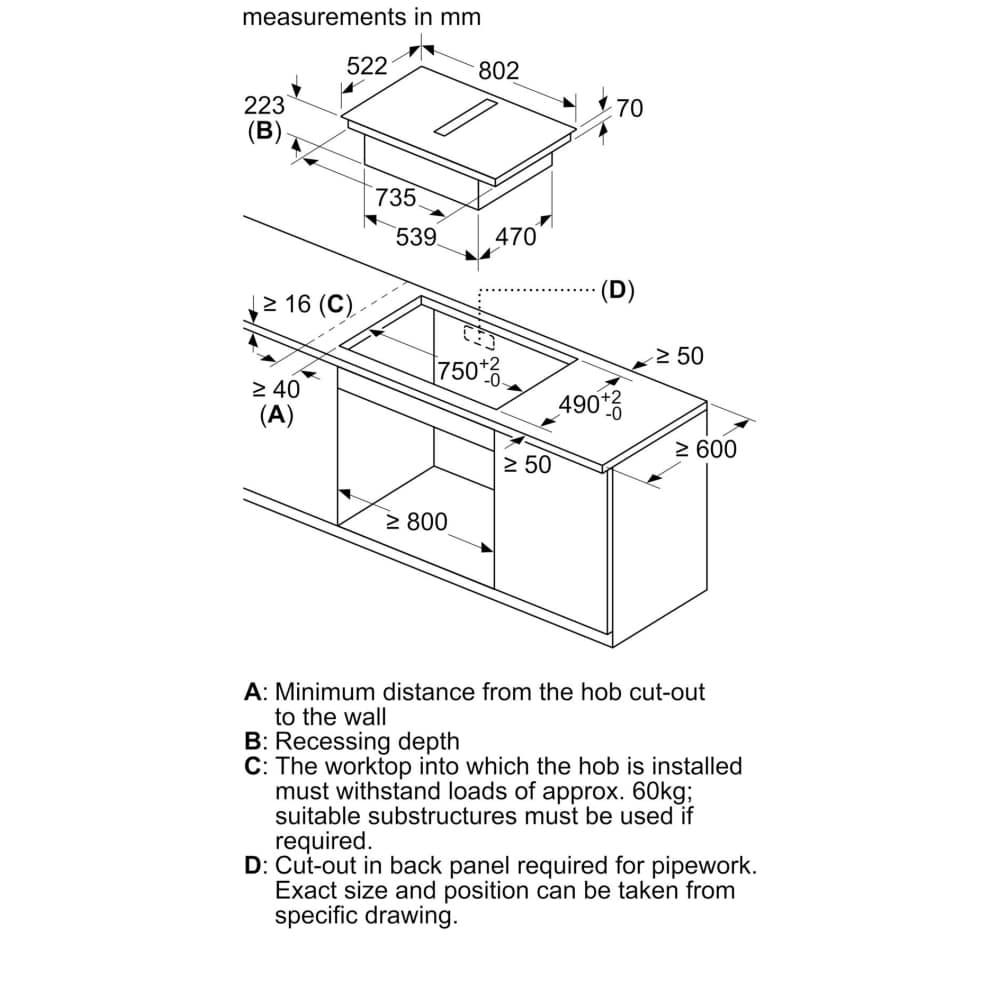

Respective mandatory installation acessories required:
HEZ9VEDU0 for ducted extraction.
HEZ9VRUD0 starter kit for unducted recirculation with cleanAir odour filters.
HEZ9VRPD0 for fully ducted and partly-ducted recirculation with cleanAir odour filters.
Please note:
This product cannot be installed above an oven
This model can either be ducted to an outside wall or recirculated with the use of an optional recirculation kit
This product has been on display in our showroom and is supplied with the full manufacturer’s warranty. It will be wrapped in bubble wrap prior to delivery but it may have minor marks or scratches.
Hob Specifications:
Frameless black glass
4 heat zones: 1 x Ø 210 mm, 2.2 KW (max. Power levels 3.7 KW) Induction; 1 x Ø 180 mm, 1.8 KW (max. Power levels 3.1 KW) Induction; 1 x Ø 180 mm, 1.8 KW (max. Power levels 3.1 KW) Induction;1 x Ø 210 mm, 2.2 KW (max. Power levels 3.7 KW) Induction
Electronic touch controls
Variable 17-stage power settings for each zone
Timer for all zones
Boost setting for all zones
Automatic pan recognition
ReStart function
QuickStart function
Control panel lock
2 stage residual heat indicator for each zone
Automatic safety switch-off
Extractor Specifications:
Electronic touch controls
3 speed settings plus boost
Automatic switch-on of ventilation system when a cooking zone is used
Automatic delayed shut-off
Extraction performance in ducted extraction (according to EN 61591): min. normal setting 332 m3/h , max. normal setting 500 m3/h , max. Boost-/Intensive setting 575 m3/h .
Extraction performance in recirculated extraction (according to EN 61591): min. normal setting 327 m3/h , max. normal setting 500 m3/h , max. Boost-/Intensive setting 565 m3/h.
Noise level in ducted extraction (Sound power level according to EN 60704-3): min. normal setting 60 dB re 1 pW, max. normal setting 68 dB re 1 pW, max. Boost-/Intensive setting 72 dB re 1 pW.
Noise level in recirculated extraction (Sound power level according to EN 60704-3. ): min. normal setting 58 dB re 1 pW, max. normal setting 68 dB re 1 pW, max. Boost-/Intensive setting 70 dB re 1 pW.
Connected load: 7.4 KW
Respective mandatory installation acessories required:
HEZ9VEDU0 for ducted extraction.
HEZ9VRUD0 starter kit for unducted recirculation with cleanAir odour filters.
HEZ9VRPD0 for fully ducted and partly-ducted recirculation with cleanAir odour filters.
Please note:
This product cannot be installed above an oven
This model can either be ducted to an outside wall or recirculated with the use of an optional recirculation kit
